Products Description
|
Type |

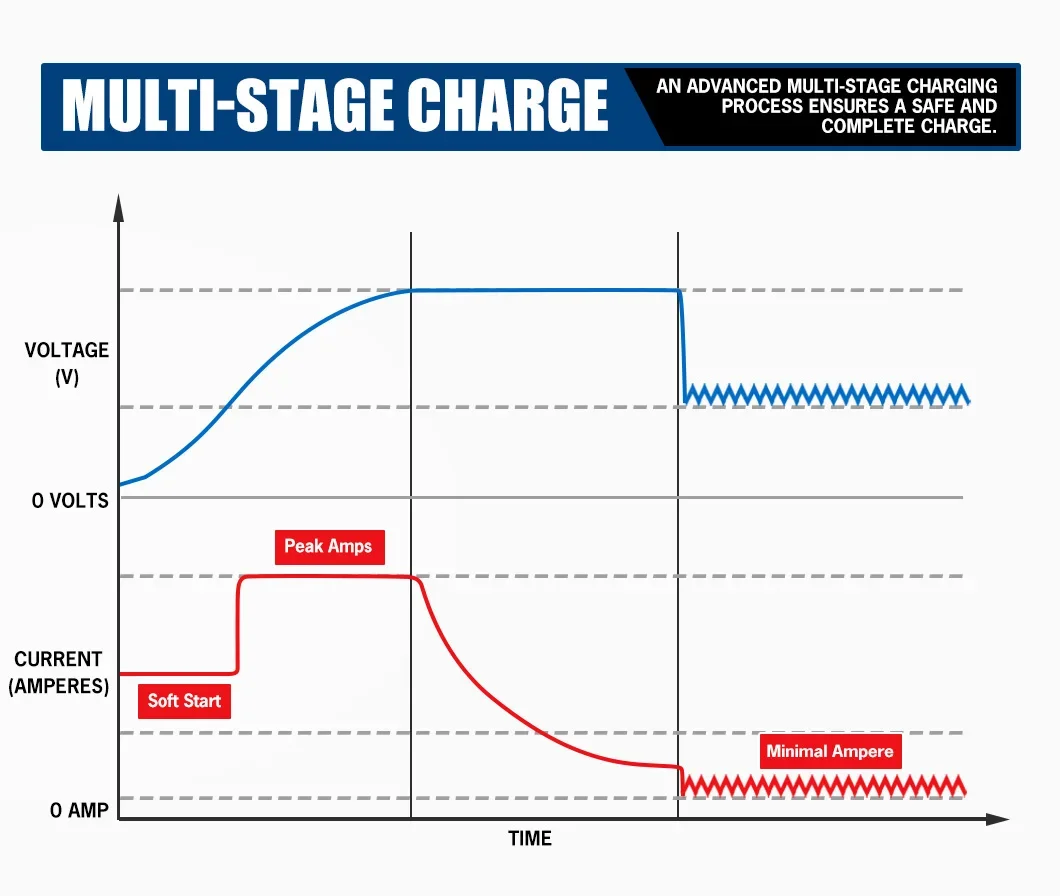

Multi Stage |
|

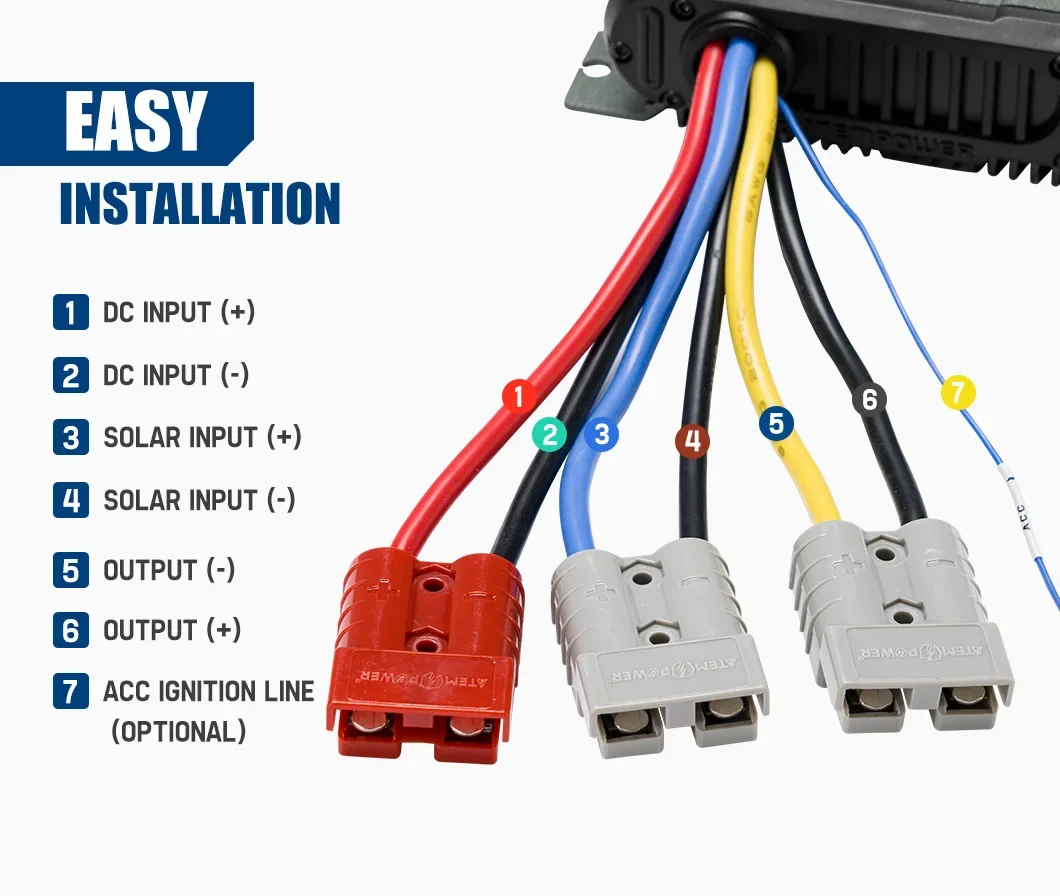

Input |
DC Battery: 13.0-16.0 Volts; Solar Input: 16.0-25.0 Volts |
|
Output/Charging Voltage |
14.4-15.4 Volts(Stops charging when alternator output or vehicle battery below 12.5 volts) |
|
Output Current |
DC Output: 40A/Solar Output: 40A |
|
Minimum Start Voltage |
2.5 Volts-For battery being charged |
|
Soft Start |
Yes |
|
Soft Charge Current |
40 A |
|
Bulk Charge Voltage |
14.7V(AGM/Gel)14.4V(Lead Acid)15.4V(Calcium)14.4V(LiON) |
|
Absorption |
Constant voltage with automatic amperage control |
|
Equalisation |
automatic |
|
Float Charge Voltage |
13.5V(AGM/Gel)13.5V(Lead Acid)13.5V(Calcium) |
|
Float Charge Current |
100mA |
|
Battery Range |
120 to 1200Ah |
|
0-1 Metres |
10AWG |
|
1-5 Metres |
6AWG |
|
5 metres |
4AWG |
